| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | ISO,CCC |
| Model Number: | BM-Johnson filter 02 |
| Minimum Order Quantity: | 1 EA |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Plastic Film And Wooden Case |
| Delivery Time: | Around 10 Days |
| Payment Terms: | T/T, Western Union, MoneyGram, |
| Supply Ability: | 800EA Per Week |
| Material: | SUS316 | Type: | Wedge Wire Screen |
|---|---|---|---|

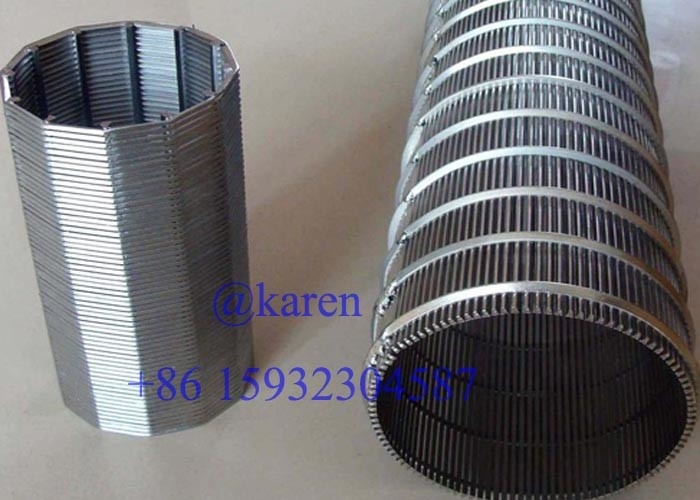

| Name: | Johnson V-wire Shape | Shape: | Filter Screen Tube |
| Screen Gap: | 0.02-60Mm | Filteration: | 23Um |

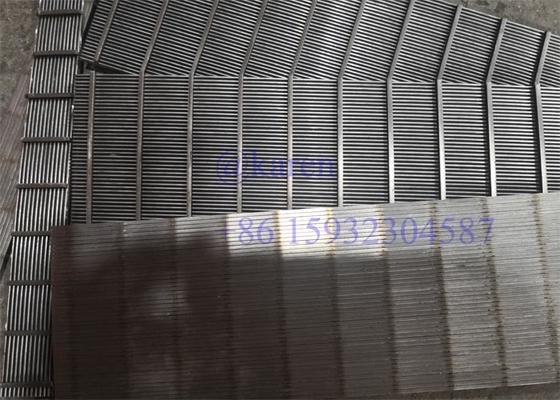

Wedge Wire Screen Panels For Effective Solid Liquid Filtration
Wedge Wire Screen Panel Information
Each Wedge Wire screen product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.
Wedge Wire Screen Panel Specification
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||
| OD Range | 25mm-2000mm | |||||
| ID Range | 19mm-1981mm | |||||
| Length Range | Up to 6000 mm | |||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | |||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8*2.52x3 | 3*5 | 3*5 |
| Connection | Flange and thread | |||||
| End Type | Closed plate | |||||
| Noted |
Customized According To Special Requirement |
|||||
Wedge Wire Screen Panel Advatages
(1) The opening range is large and the opening rate is high.
(2) Each intersection of the johnson vee wire and the support rod is welded, so the accuracy is high and the gap is accurate.
(3) There are only two points of contact between the continuous gap and the solid particles, which is not easy to plug.
(4) The surface is smooth, the catalyst wears less, the particles are not easy to crush, and the surface roughness of the sieve bar can be as low as 6.3 um.
(5) The sieve mesh with Johnson wedge wire screen wire and connecting rod of different gap sizes and specifications has good strength. If the operating conditions are harsh and the load is large, the strengthening material and connecting rod with large cross section can be selected, and the tensile force of each solder joint can reach 2000-3000N.
(6) Long service life, easy installation, lightweight, more economical.
Wedge Wire Screen Panel Features
The features of the Wedge Wire screen make it an attractive solution for
separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.
Wedge Wire Screen Panel Characters
|
Screen installation suggestions |
|
Sand analysis of formation materials |
|
Screen size recommendations |
|
Well construction consultation |
Wedge Wire Screen Panel Application
Widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well
as many other applications involving liquid & solids separation.
