| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | ISO,CCC |
| Model Number: | BM-Johnson filter 02 |
| Minimum Order Quantity: | 1 EA |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Plastic Film And Wooden Case |
| Delivery Time: | Around 10 Days |
| Payment Terms: | T/T, Western Union, MoneyGram, |
| Supply Ability: | 800EA Per Week |
| Material: | SUS316 | Type: | Wedge Wire Screen |
|---|---|---|---|
| Name: | Johnson V-wire Shape | Shape: | Filter Screen Tube |
| Screen Gap: | 0.02-60Mm | Filteration: | 23Um |

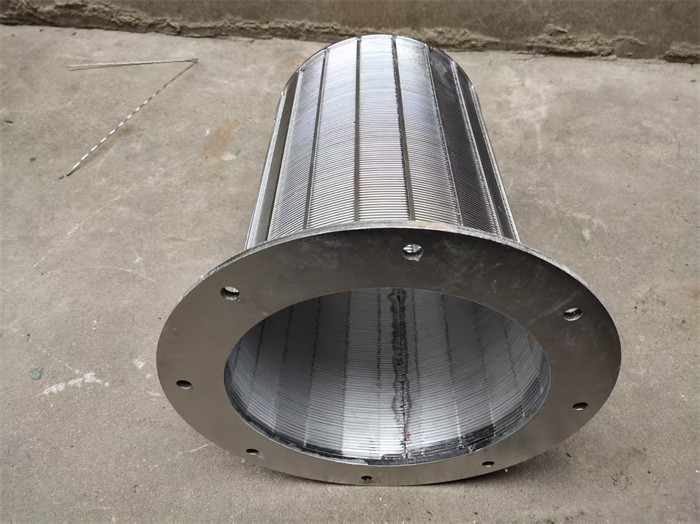

Wedge Wire Screen Resin Traps,Johnson Wedge Wire
Johnson Screen Resin Trap Filter Information
Johnson wedge wire resin trap screen filters were designed to act as a safeguard without disrupting process flow.
Wedge Wire Screen for Tank Equipment, Johnson Resin Trap Filter With Flange is a mechanical self-cleaning device that was
developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from
mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities
than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance
Johnson Screen Resin Trap Filter Specification
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||
| OD Range | 25mm-2000mm | |||||
| ID Range | 19mm-1981mm | |||||
| Length Range | Up to 6000 mm | |||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | |||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8*2.52x3 | 3*5 | 3*5 |
| Connection | Flange and thread | |||||
| End Type | Closed plate | |||||
| Noted |
Customized According To Special Requirement |
|||||
| surface profiles | support profiles | min.dia/mm | min. slot width/mm | Outside diameter/mm | No.of support profiles |
| 10s | Q25 | 21 | 0.10 | 30 | 8 |
| 11s | Q20/Q25 | 23 | 0.030 | 45 | 10 |
| 12s | 22S | 30 | 0.050 | 57 | 12 |
| 12s | Q25 | 23 | 0.030 | 70 | 18 |
| 12s | Q35 | 30 | 0.050 | 85 | 18 |
| 18s | 22S/Q35 | 30 | 0.050 | 97 | 20 |
| 18s | Q25 | 25 | 0.030 | 110 | 24 |
| 18s | D45 | 300 | 0.20 | 137 | 30 |
| 18s | 10X3 | 300 | 0.20 | 164 | 36 |
| 22s | 22S/35Q | 45 | 0.10 | 215 | 48 |
| 22s | D45 or 10x3 or 25x3 | 300 | 0.20 | 268 | 48 |
| 28s | Q35 | 215 | 0.20 | 305 | 40 |
| 28s | D45 or 10x3 or 25x3 | 300 | 0.20 | 380 | 48 |
| 34s | Q35 | 300 | 0.20 | 460 | 60 |
| 34s | D45 | 300 | 0.20 | 510 | 64 |
| 34s | 10x3 or 25x3 | 300 | 0.20 | 625 | 80 |
| 42s | Q35 or D45 | 300 | 0.20 | 914 | 180 |
| 42s | 10x3 or 25x3 | 300 | 0.20 |
Johnson Screen Resin Trap Filter Features
High mechanical strength can bear large pressure drop
Equal slots for filtering can form equally distributed filter cake
The wedge-type slot can improve backflushing and regeneration performance
Johnson Screen Resin Trap Filter Characters
|
Screen installation suggestions |
|
Sand analysis of formation materials |
|
Screen size recommendations |
|
Well construction consultation |
Johnson Screen Resin Trap Filter Application
Widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well
as many other applications involving liquid & solids separation.
