| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | ISO,CCC |
| Model Number: | BM-Johnson filter 02 |
| Minimum Order Quantity: | 1 EA |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Plastic Film And Wooden Case |
| Delivery Time: | Around 10 Days |
| Payment Terms: | T/T, Western Union, MoneyGram, |
| Supply Ability: | 800EA Per Week |
| Material: | SUS316 | Type: | Wedge Wire Screen |
|---|---|---|---|
| Name: | Johnson V-wire Shape | Shape: | Filter Screen Tube |
| Screen Gap: | 0.02-60Mm | Filteration: | 23Um |

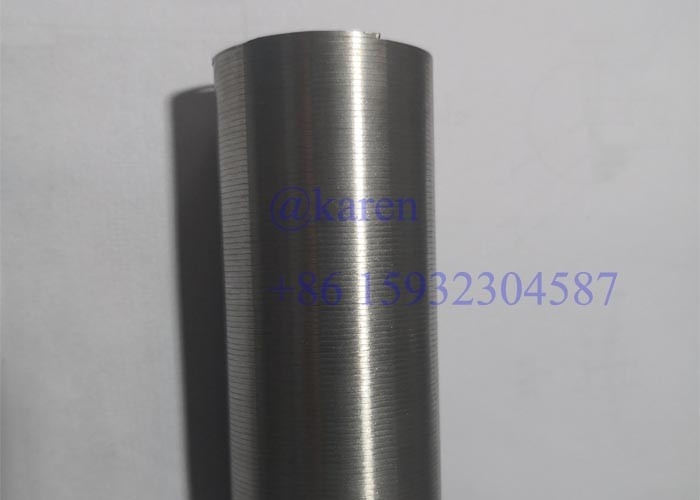

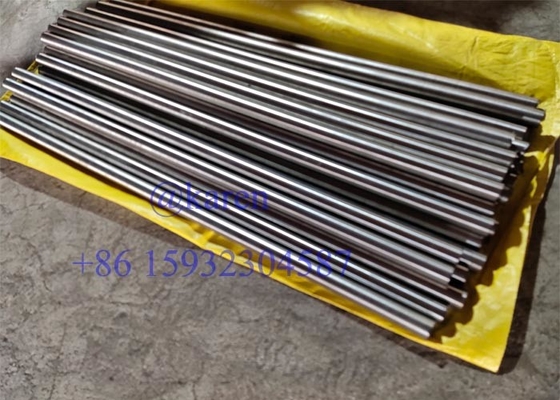

Wedge Wire Screen,JOHNSON WIRE SCREEN Manufacture
JOHNSON WIRE SCREEN Information
Johnson wedge wire resin trap screen filters were designed to act as a safeguard without disrupting process flow.
Wedge Wire Screen for Tank Equipment, Johnson Resin Trap Filter With Flange is a mechanical self-cleaning device that was
developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from
mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities
than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance
JOHNSON WIRE SCREEN Specification
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||
| OD Range | 25mm-2000mm | |||||
| ID Range | 19mm-1981mm | |||||
| Length Range | Up to 6000 mm | |||||
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | |||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8*2.52x3 | 3*5 | 3*5 |
| Connection | Flange and thread | |||||
| End Type | Closed plate | |||||
| Noted |
Customized According To Special Requirement |
|||||
| surface profiles | support profiles | min.dia/mm | min. slot width/mm | Outside diameter/mm | No.of support profiles |
| 10s | Q25 | 21 | 0.10 | 30 | 8 |
| 11s | Q20/Q25 | 23 | 0.030 | 45 | 10 |
| 12s | 22S | 30 | 0.050 | 57 | 12 |
| 12s | Q25 | 23 | 0.030 | 70 | 18 |
| 12s | Q35 | 30 | 0.050 | 85 | 18 |
| 18s | 22S/Q35 | 30 | 0.050 | 97 | 20 |
| 18s | Q25 | 25 | 0.030 | 110 | 24 |
| 18s | D45 | 300 | 0.20 | 137 | 30 |
| 18s | 10X3 | 300 | 0.20 | 164 | 36 |
| 22s | 22S/35Q | 45 | 0.10 | 215 | 48 |
| 22s | D45 or 10x3 or 25x3 | 300 | 0.20 | 268 | 48 |
| 28s | Q35 | 215 | 0.20 | 305 | 40 |
| 28s | D45 or 10x3 or 25x3 | 300 | 0.20 | 380 | 48 |
| 34s | Q35 | 300 | 0.20 | 460 | 60 |
| 34s | D45 | 300 | 0.20 | 510 | 64 |
| 34s | 10x3 or 25x3 | 300 | 0.20 | 625 | 80 |
| 42s | Q35 or D45 | 300 | 0.20 | 914 | 180 |
| 42s | 10x3 or 25x3 | 300 | 0.20 |
JOHNSON WIRE SCREEN Advatages
(1) The opening range is large and the opening rate is high.
(2) Each intersection of the johnson vee wire and the support rod is welded, so the accuracy is high and the gap is accurate.
(3) There are only two points of contact between the continuous gap and the solid particles, which is not easy to plug.
(4) The surface is smooth, the catalyst wears less, the particles are not easy to crush, and the surface roughness of the sieve bar can be as low as 6.3 um.
(5) The sieve mesh with Johnson wedge wire screen wire and connecting rod of different gap sizes and specifications has good strength. If the operating conditions are harsh and the load is large, the strengthening material and connecting rod with large cross section can be selected, and the tensile force of each solder joint can reach 2000-3000N.
(6) Long service life, easy installation, lightweight, more economical.
JOHNSON WIRE SCREEN Features
High mechanical strength can bear large pressure drop
Equal slots for filtering can form equally distributed filter cake
The wedge-type slot can improve backflushing and regeneration performance
JOHNSON WIRE SCREEN Characters
|
Screen installation suggestions |
|
Sand analysis of formation materials |
|
Screen size recommendations |
|
Well construction consultation |
JOHNSON WIRE SCREEN Application
Widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well
as many other applications involving liquid & solids separation.
