| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN017 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $0.16-$4.08per piece |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Material: | SUS304,316,316L | Filtering Rate: | 5,10,20,25 Micron..600micron |
|---|---|---|---|
| Dia: | 45mm,60mm,150mm,as Client Request | Mesh Type: | Plain Weave And Dutch Weave |
| Layers: | Single Layer,2,3,4,5 Layers | Feeature: | Flexible Working |
| Application: | Recycling Plastic And Rubber | Sample: | Would Be Free |
| Shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Spot Welded: | 4 Spot Or 8 Spot, Could As Client Request | Tooling: | With Charge |
| Usage: | Liquid Filter, Air Filter, Solid Filter |

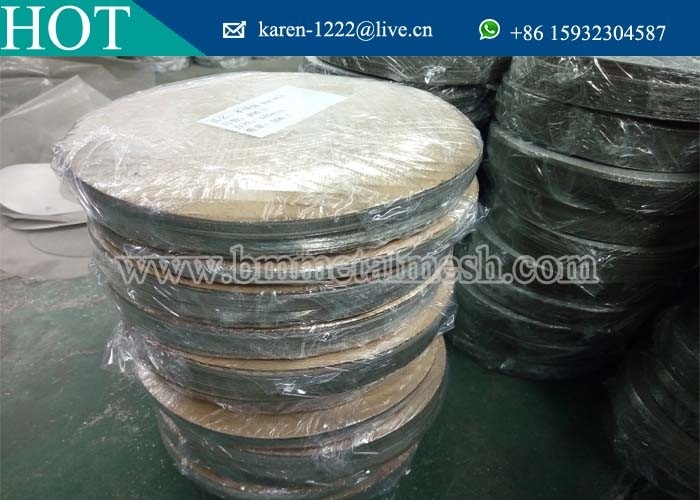

50 Micron Stainless Steel Woven Metal Mesh For Extruder Sceen Filters,Recycling Plastic Filter Screen
Packaging Details
wire oil filter screen mesh
1.30-50m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen
Delivery Time
Shipped in 7 days after payment
Details table:
| Stainless steel wire mesh | |
| Weave Style | plain weave |
| Material | 304, 316, 316L or customized |
| Weave style | plain weave, twill weave and dutch weave |
| Type | weave wire mesh, wire cloth, filter elements |
| Application | screen, filters, woven wire mesh |
| Technique | woven |
| Mesh Count | 1x1-635x635mesh/inch |
| Thread Diameter | 0.008-0.08inch (0.0203-2.03mm) |
| Mesh Opening | 0.0008-0.92inch(0.0203-23.37mm) |
| Commonly Roll details | 30m length X 1m width (length and width can be customized) |
Products deep produce:
Stainless steel round filter disc with metal ring
dutch weave 316L stainless steel round filter circle
25 50 micron 316L dutch weave stainless steel screen mesh for rosin press with 4"x4"
250 micron dutch weave black steel wire sieve mesh
Details sheet:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Wire diameters: 0.01-6.00 mm.
Disc diameters: 5-600 mm.
Disc shapes: round (diameter 44-600 mm), ring (inner diameter 18-50 mm, outer diameter 50-350 mm), rectangular (length 60-400 mm, width 50-100 mm), crescent, semicircle, square, oval, abnormal shape, etc.
Weaving types: plain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.
Layers: single layer or multiple layers.
Edge processing methods: spot welding, wrapping edge or no edge processing.
Marginal materials: stainless steel, copper, aluminum, rubber, etc.
Filter precision: 0.1-300 µm.
Metal mesh filter disc Mould
4 spot welded 3 layers stainless steel mesh filter disc
Features:
We are factory,so any quantity would be accept.
The Common Shipping:
