| Place of Origin: | CHINA |
| Brand Name: | BM |
| Certification: | CE |
| Model Number: | WWM |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Nedotiated |
| Packaging Details: | Plastic Film And Then Wooden Case |
| Delivery Time: | 7-10 Days After Getting The Deposite |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 60000 M² Per Week |
| Diameter: | 300MM Or Could Be Customized | Mesh Size: | 60 Mesh |
|---|---|---|---|
| Usage: | Filtration | Weave Type: | Plain Weave |
| Material: | Stainless Steel 201 | Application: | Recycling Pellitizer Mesh Filters Spare Parts |

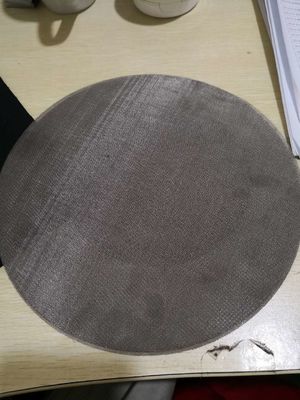

Recycling Pellitizer Mesh Filters Spare Parts 60 Mesh Diameter 300MM
Stainless Steel Wire Mesh Parameter
|
Stainless Steel Wire Mesh Description
Micron stainless steel wire mesh is a surface filter type medium. It is made by weaving a specific metal wire into a predetermined pattern to form holes of different shapes and sizes. Plain weave, twill square, plain Dutch and twill Dutch are common weave patterns.
The multi-layer micron metal mesh is formed by sintering two or more layers (2-12 layers) of stainless steel wire mesh, which is then compressed and sintered together in a vacuum. Its micron grade ranges from 0.5 microns to 300 microns.
Stainless Steel Wire Mesh Characters
Stainless Steel Wire Mesh Specification
| Stainless Steel Wire Mesh Specification Table | |||
| Mesh/inch | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 6x6 | 0.89 | 3.35 | SS304 ,SS304LorSS316,SS316L |
| 8x8 | 0.71 | 2.46 | SS304 ,SS304LorSS316,SS316L |
| 10x10 | 0.51 | 2.03 | SS304 ,SS304LorSS316,SS316L |
| 12x12 | 0.508 | 1.6 | SS304 ,SS304LorSS316,SS316L |
| 16x16 | 0.457 | 1.13 | SS304 ,SS304LorSS316,SS316L |
| 18x18 | 0.432 | 0.98 | SS304 ,SS304LorSS316,SS316L |
| 20x20 | 0.406 | 0.86 | SS304 ,SS304LorSS316,SS316L |
| 30x30 | 0.305 | 0.54 | SS304 ,SS304LorSS316,SS316L |
| 35x35 | 0.3 | 0.56 | SS304 ,SS304LorSS316,SS316L |
| 40x40 | 0.23 | 0.4 | SS304 ,SS304LorSS316,SS316L |
| 50x50 | 0.229 | 0.28 | SS304 ,SS304LorSS316,SS316L |
| 60x60 | 0.178 | 0.25 | SS304 ,SS304LorSS316,SS316L |
| 70x70 | 0.16 | 0.24 | SS304 ,SS304LorSS316,SS316L |
| 80x80 | 0.14 | 0.18 | SS304 ,SS304LorSS316,SS316L |
| 90x90 | 0.12 | 0.16 | SS304 ,SS304LorSS316,SS316L |
| 100x100 | 0.114 | 0.14 | SS304 ,SS304LorSS316,SS316L |
| 110x110 | 0.1016 | 0.1295 | SS304 ,SS304LorSS316,SS316L |
| 120x120 | 0.094 | 0.1168 | SS304 ,SS304LorSS316,SS316L |
| 150x150 | 0.066 | 0.1041 | SS304 ,SS304LorSS316,SS316L |
| 160x160 | 0.0635 | 0.965 | SS304 ,SS304LorSS316,SS316L |
| 180x180 | 0.0584 | 0.0838 | SS304 ,SS304LorSS316,SS316L |
| 200x200 | 0.0533 | 0.0737 | SS304 ,SS304LorSS316,SS316L |
| 250x250 | 0.0406 | 0.061 | SS304 ,SS304LorSS316,SS316L |
| 300x300 | 0.0381 | 0.0457 | SS304 ,SS304LorSS316,SS316L |
| 325x325 | 0.0356 | 0.0432 | SS304 ,SS304LorSS316,SS316L |
| 350x350 | 0.03 | 0.042 | SS304 ,SS304LorSS316,SS316L |
| 400x400 | 0.0254 | 0.037 | SS304 ,SS304LorSS316,SS316L |
| 450x450 | 0.028 | 0.028 | SS304 ,SS304LorSS316,SS316L |
| 500x500 | 0.0254 | 0.0254 | SS304 ,SS304LorSS316,SS316L |
| 635x635 | 0.0203 | 0.0203 | SS304 ,SS304LorSS316,SS316L |
Stainless Steel Wire Mesh Technique
Stainless Steel Wire Mesh Usage
Extruder screen is essential in preventing contamination in the melted mass during the extrusion process. It is effect to keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use. Mainly used for filtration of plastics and rubber processing industry, chemical and pharmaceutical industry.
