| Place of Origin: | China |
| Brand Name: | BM |
| Certification: | CE,CCC |
| Model Number: | BM-SCREEN |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $0.09-$2.83per piece |
| Packaging Details: | water-proof plastic film and wooden case |
| Delivery Time: | 10-15 days after get the deposite |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 50000pcs per week |
| Technique: | Woven | Filtering Rate: | 50 Micron |
|---|---|---|---|
| Dia: | 45mm,140mm,250mm,270mm As Client Request | Mesh Type: | Plain Weave And Dutch Weave |
| Layers: | Single Layer,2,3,4,5 Layers | Feature: | Flexible Working |
| Application: | Luquid Or Soild Filter Disc,recycle Plastic | Sample: | Would Be Free |
| Shipping: | By Sea,by Express | Main Marking: | Europe,America,Australia,Asia,Africa |
| Tooling: | With Charge | Material: | SUS304,316,316L |
| Named: | Screen Filter Mesh |
50 Micron Mesh Disc Filter Packs For PP PE Plastic Recycling (Factory)
Description:
Disc filter is a type of water filter used primarily in irrigation, similar to a screen filter, except that the filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of poker chips. Each disc is covered with small grooves or bumps. The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack. The water passes through the small passages in between and the impurities are trapped behind.
Due to its durability and chemical resistance, it is mainly used in melt extrusion and filtration.
Details table:
| Stainless steel wire mesh | |
| Weave Style | plain weave |
| Material | stainless steel wire mesh |
| Weave style | plain woven wire mesh |
| Type | weave wire mesh, wire cloth, filter elements |
| Application | screen, filters, woven wire mesh |
| Technique | woven |
| Mesh Count | 1x1-635x635mesh/inch |
| Thread Diameter | 0.008-0.08inch (0.0203-2.03mm) |
| Mesh Opening | 0.0008-0.92inch(0.0203-23.37mm) |
| Hole style | square |
Kinds shape
Details sheet:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
2.63 |
Making Process:
We are factory,so any quantity would be accept.

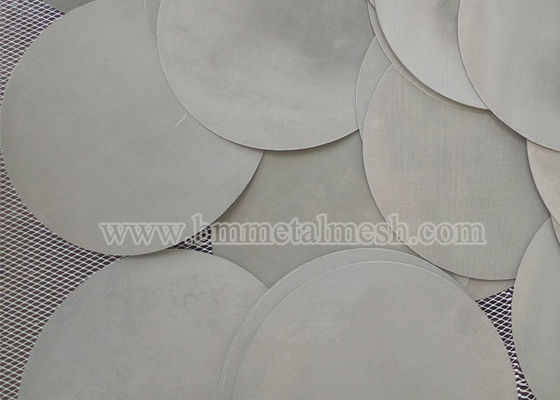

50 Micron Stainless Steel Wire Screen/Mesh Screen For Extruder
